Revit Family

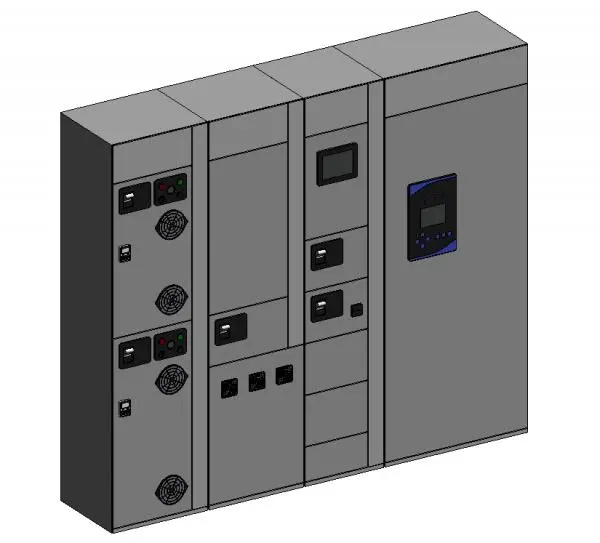

MCC Section

Name: MCC Section
Brand: Kevin Griendling
SKU: a65162ca-4e1e-4b95-b7cf-549fa4257af2
Availability: InStock

by Kevin Griendling

About this asset

MCC Section is a Revit family (.rfa) from the RevitCity object library, filed under Electrical · Equipment · Panels. It is classified 26 20 00 Low-Voltage Electrical Distribution under CSI MasterFormat. Contributed by Nathan Wihnan in 2022. The download is a 1.9 MB loadable family you load into a project and place. Migrated to Archade from revitcity.com with its original categorisation, classification and imagery; the file itself has not been re-authored.

Specifications

File formats

.rfa

Asset type: Revit Family
File size: 1.9 MB
Region standards: Standard-agnostic
Disciplines: MEP / Building Services
Classification: MasterFormat26 20 00
Version: 1.0
Last updated: 1 Aug 2026

What changed in 1.0

Imported from RevitCity. Source asset: revitcity-22704. Original author: Nathan Wihnan. Licence: CC0 1.0 — Public Domain. File republished unchanged.
